Caliper Compressor
Four honest compressor behaviours in one unit: FET, Opto, Tube and Clean, each with its own detection, ballistics and colour. Switch modes and the whole machine re-lights around one gain-reduction display, with the real attack and release times for the mode you are in. Zero added latency in every mode.
Four machines. One sheet of black glass.
-50%
Caliper Compressor
Four honest compressor behaviours in one unit: FET, Opto, Tube and Clean, each with its own detection, ballistics and colour. Switch modes and the whole machine re-lights around one gain-reduction display, with the real attack and release times for the mode you are in. Zero added latency in every mode.
Four machines. One sheet of black glass.
Previews

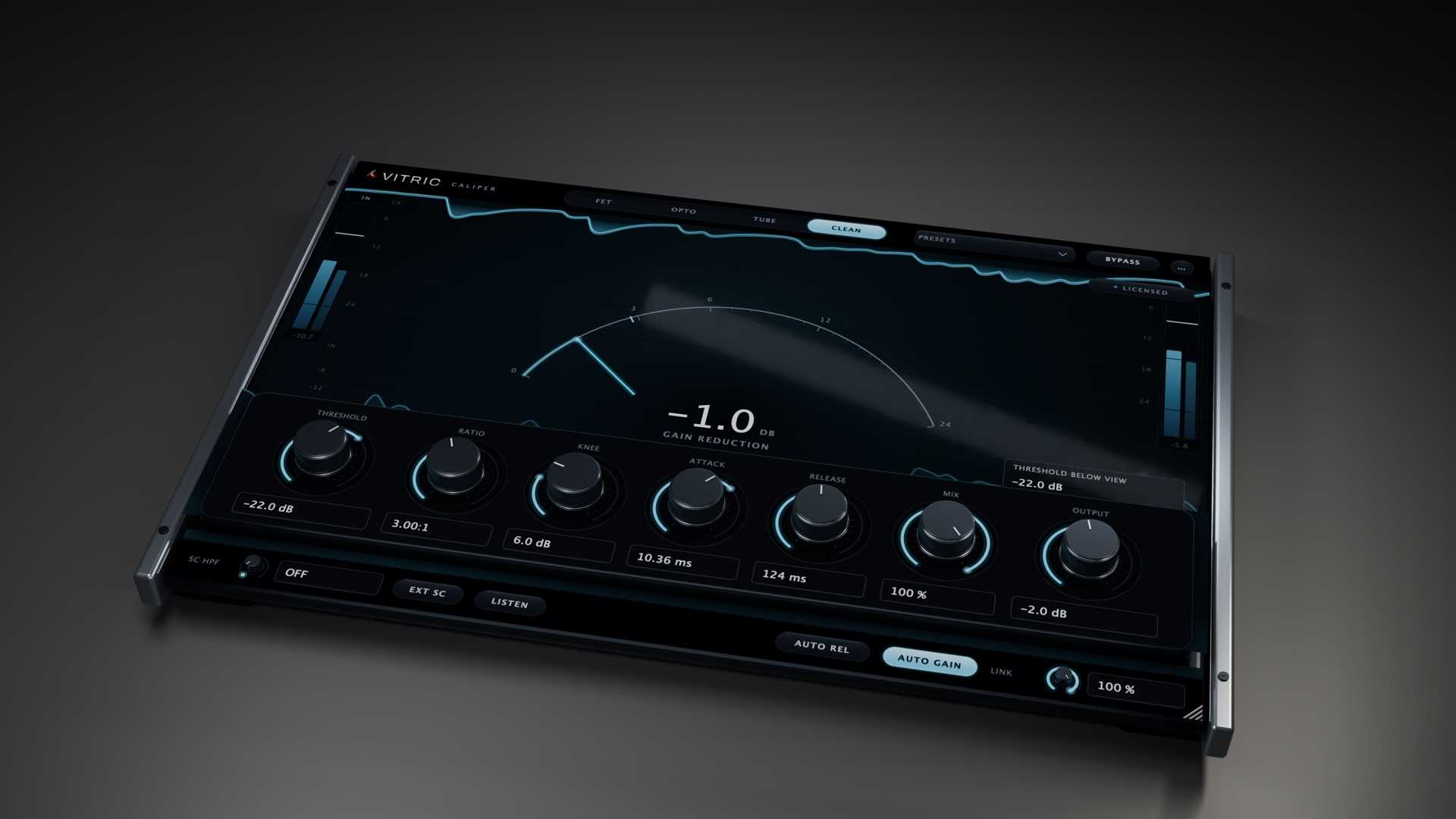

Caliper Compressor in motion

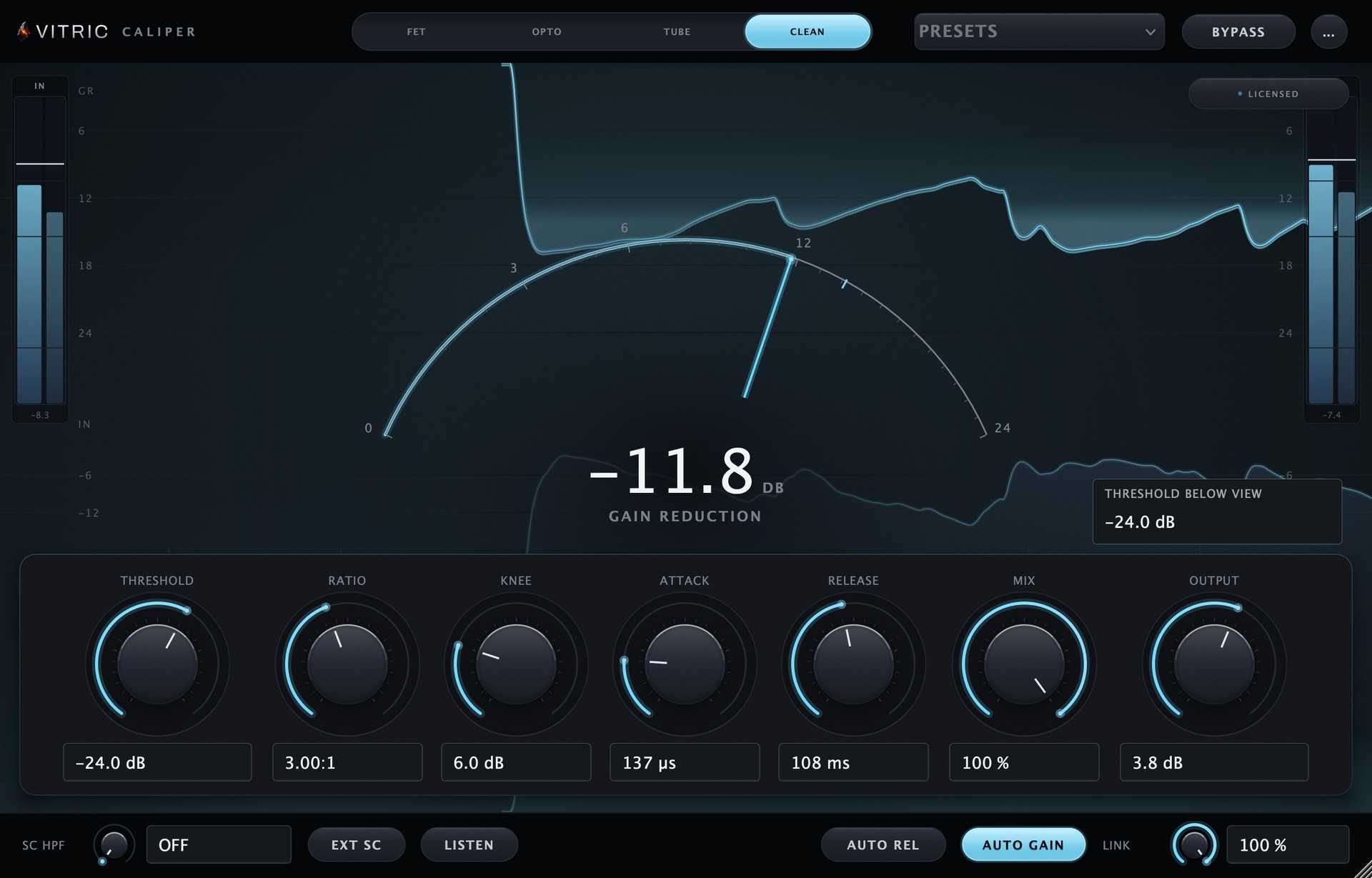

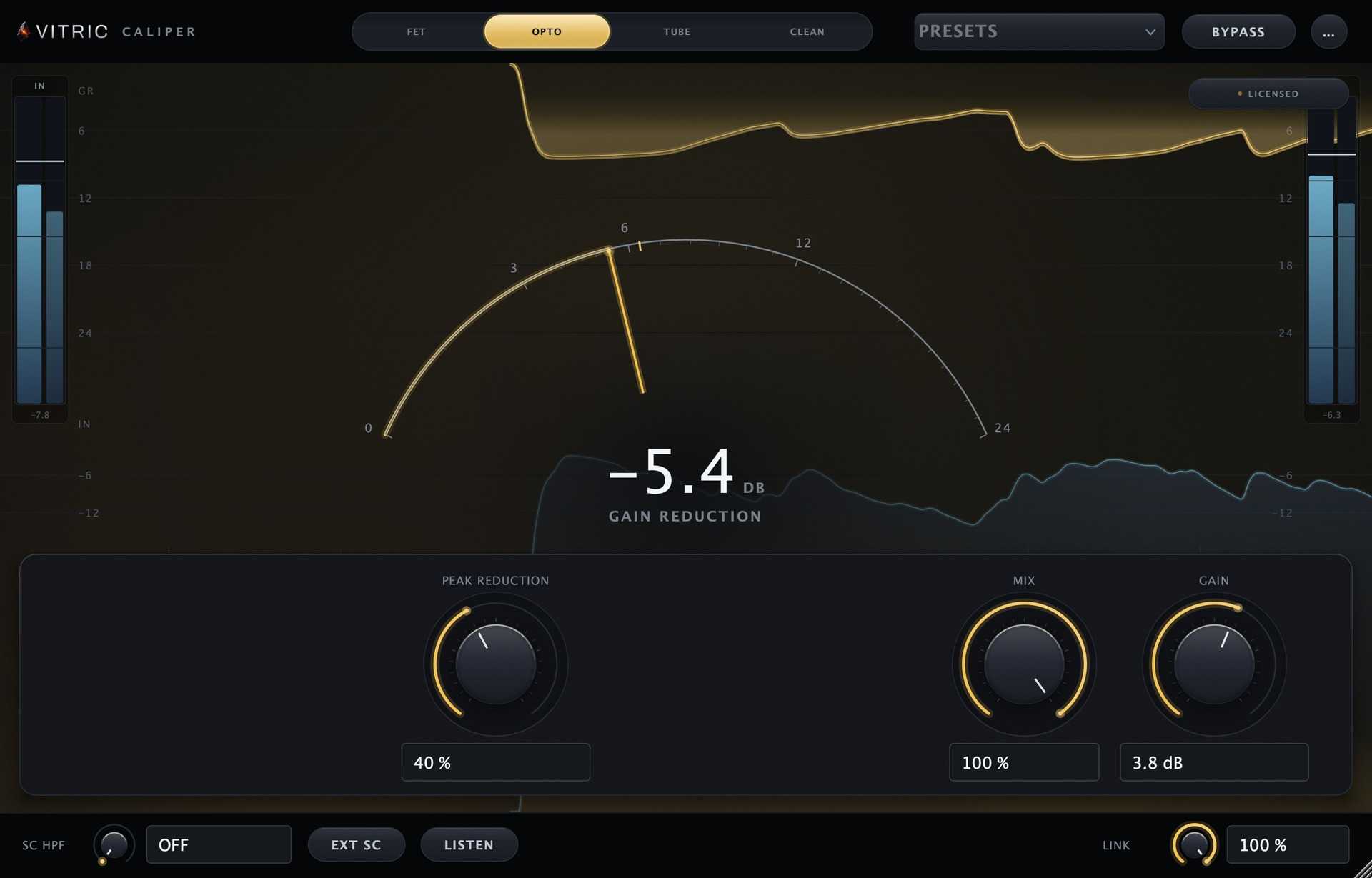

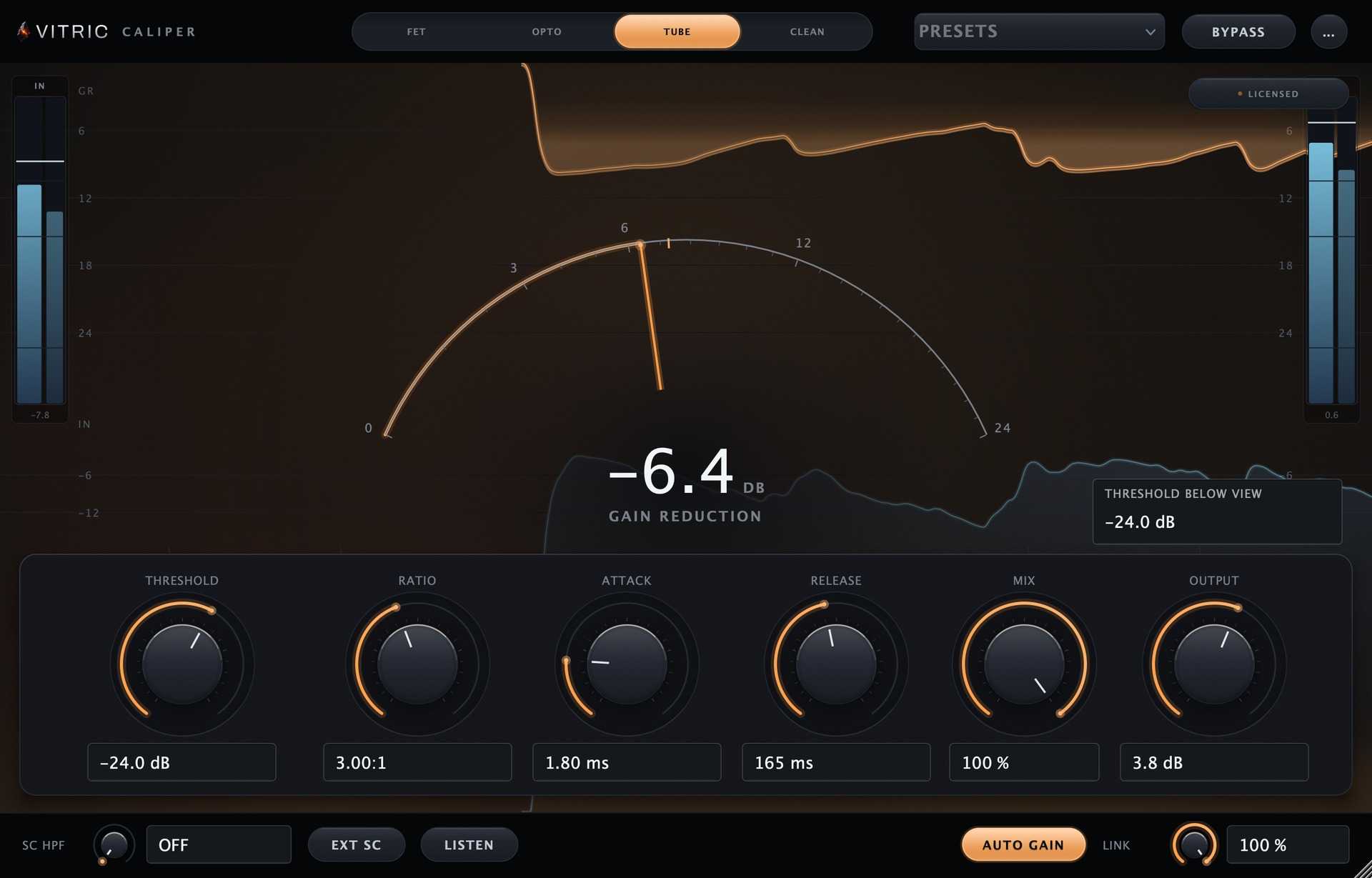

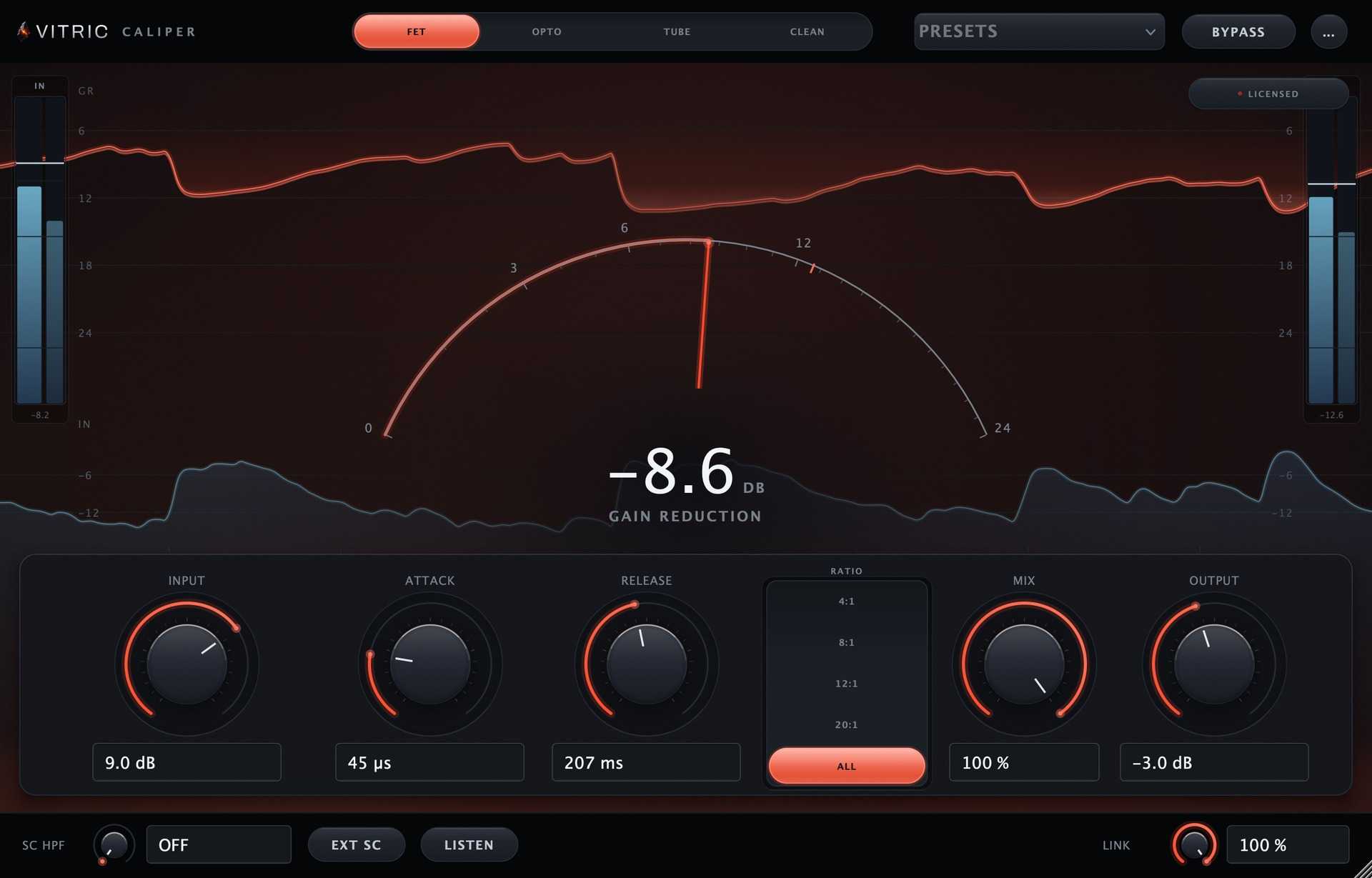

FET is built for the 1176 seat: a fixed threshold with Input driving the signal into it, attack from 20 to 800 microseconds, release from 50 ms to 1.1 s, ratio buttons at 4:1, 8:1, 12:1 and 20:1 plus ALL, and feedback detection that reads the already-compressed signal the way the hardware does. Opto is the LA-2A move: Peak Reduction drives the detector only, attack sits at 10 ms and release is two-stage with light memory, so the harder it has been working the slower it lets go. Tube is a CL 1B-style wide 10 dB knee with variable ballistics, attack from 0.5 to 300 ms and release from 5 ms to 10 s. Clean is feedforward with exact knee math from 0 to 24 dB, attack from 0.02 to 300 ms, release from 5 ms to 4 s, and an optional auto release. The gain-reduction display is the whole interface: the input history wave, the GR curtain biting down from the top in the mode's own light, a rim needle and one large readout. Switch modes and the machine re-lights and remaps its control bar to that mode's own workflow, while MIX and OUTPUT hold their positions so your hand does not have to hunt. Attack and release read the physical time for the mode you are in and accept typed values in µs, ms or s; a mode change cancels a draft that belonged to the previous mode. When a Tube or Clean threshold sits below the visible history, an exact readout appears for it and disappears again when the marker comes back on scale. Every mode carries the same kit: parallel Mix on the unit, auto gain on Tube and Clean, an external sidechain with a 20 to 500 Hz high-pass and a listen switch, stereo link from 0 to 100 percent with the detector on the louder channel, and a click-free bypass crossfade. Eight factory presets, full state recall, automation on all 18 parameters, and a freely resizable window from 840x540 up to 1600x980. Zero samples of added latency, in every mode, so it sits in a tracking chain as comfortably as on a master. Caliper is a stereo unit. There is no lookahead, no oversampled mode, no A/B slots and no mid/side processing. If your work needs those on this insert, this is not the compressor for that part of it. Built and used at a working recording studio.
What Caliper Compressor offers
Four compressor behaviours in one unit: FET, Opto, Tube and Clean, each detecting its own way
Feedback-style detection on FET, Opto and Tube; Clean is feedforward with exact knee math
FET: 20 to 800 µs attack, ratio buttons at 4:1, 8:1, 12:1 and 20:1, plus the ALL setting
Real times, not percentages: attack and release read and type in µs, ms or seconds, per mode
Full sidechain kit: external input, 20 to 500 Hz high-pass, listen, and 0 to 100 % stereo link
Zero added latency in every mode, parallel Mix on the unit, click-free bypass crossfade
What’s new
- First MuseHub release of Caliper Compressor (1.1.0). The MuseHub edition installs and opens directly from the Hub.
- New in 1.1.0: exact attack and release fields showing the physical time for the current mode, a clearer AUTO release, an exact readout for Tube and Clean thresholds below the visible history, stable MIX and OUTPUT positions across modes, and larger sidechain and LINK faces.
1.1.0
